Fraser Technologies offers a diverse range of aqueous component cleaning systems to suit a wide variety of applications. We help clients evaluate processes to select a solution that delivers suitably fast, effective cleaning cycles. Fully committed to supplying the highest quality cleaning equipment and systems that use superior technology, working with market-leading manufacturers, and provide ongoing after sales support.

Bespoke Equipment

If we do not have a standard system which meets your application requirements, we can arrange to build a customised one that will. We will be pleased to discuss your specific requirements and arrange process trials and demonstrations to help you identify and select the optimum cleaning system.

Powersonic Range

ultrasonic-benchtop-range
CP2600D-with-basket

Our Powersonic benchtop tanks feature unique swept-wave ultrasonics, avoiding ‘hot spots’ for consistent cleaning results.

The range of now incorporates patented ceramically enhanced industrial strength transducers. These transducers provide increased ultrasonic cleaning power, consistency and reliability compared to the competition’s conventional, wafer type design.

Swept wave ultrasonics

The exclusive benefit from choosing Powersonic ultrasonic tanks is swept wave ultrasonics. This feature controls a sweeping ultrasonic frequency which effectively creates overlapping waves of ultrasonic energy. These overlapping waves eliminate any possibility of inconsistent cleaning results primarily due to “hot spots” or areas where the ultrasonic energy may be higher than in others.

The Powersonic range benefits from:

  • 1 Year Parts and Labour Warranty
  • Range of sizes from 1.75 litres to 26 litres
  • Analog or Digital Display Timer
  • Thermostatically Controlled Heat (80oC)
  • Stainless Steel Construction
  • Stainless Steel Cover Included
  • Ceramically Enhanced Industrial Transducers
  • 45kHz Swept Wave Technology
  • Control of Power, Time and Degas Function (Digital Models Only)
  • Drain Valve.
  • Small batch precision components
  • Removal of organic residues, grease, fingerprints, oils, films, mould release, etc.

Miele IR 6002

miele-6002-ta-wes
miele-easy-service

The Miele IR 6002 aqueous multistage cleaning system features Profitronic programmable controls offering tremendous flexibility for cleaning different component and soil types.

The IR 6002 is suitable for cleaning and drying a wide range of items such as circuit boards, soldering frames, metal templates, metal components, instruments, technical and optical glassware, magazines, boxes, racks etc.

At a glance advantages of a Miele aqueous spray-in-air system:

  • Use both a fresh-water circulation and a water recovery system
  • Space-saving
  • Fully automatic programmes
  • Reliable technology – made in Germany
  • Individually programmable, password-protected
  • Nationwide on-site servicing available
  • Low operating costs.

Easy-to-service construction

Shorter service times are enabled by maintenance-friendly construction.

Application: metal components

  • Steel, stainless steel aluminium, copper, brass, diecast zinc, hard alloys

Types of soiling

  • Oil, emulsions, polishes, metal particles, lapping abrasives

Cleaning requirements:

  • Interim or final clean
  • Before assembling or packing
  • Before sticking, lacquering, welding, soldering
  • Before setting
  • Before coating (e.g. TiN and TiC)

Application: electronics

  • Unpopulated, populated or misprinted circuit boards and ceramic substrates
  • Soldering frames, soldering masks and metal templates

Types of soiling:

  • Milling dust, solder paste, flux residues and SMT adhesives

Cleaning requirements:

  • Before populating
  • After soldering
  • After printing
  • Before circuit tests
  • Before lacquering
  • After misprinting.

Application: glass and optical ware

  • Coated and uncoated glass, e.g. moulded glass, safety glass, optical lenses

Types of soiling:

  • Dust, glass dust, fingerprints, particles, lapping abrasives, polish, wax crayon

Cleaning requirements:

  • Interim or final clean
  • Before and after coating

Application: plastics

  • Plastic components, magazines and transport containers

Types of soiling:

  • Separating agent, dust, particles, oil

Cleaning requirements:

  • Interim or final clean
  • Before assembly or packing.
Professional cleaning machine IR 6002

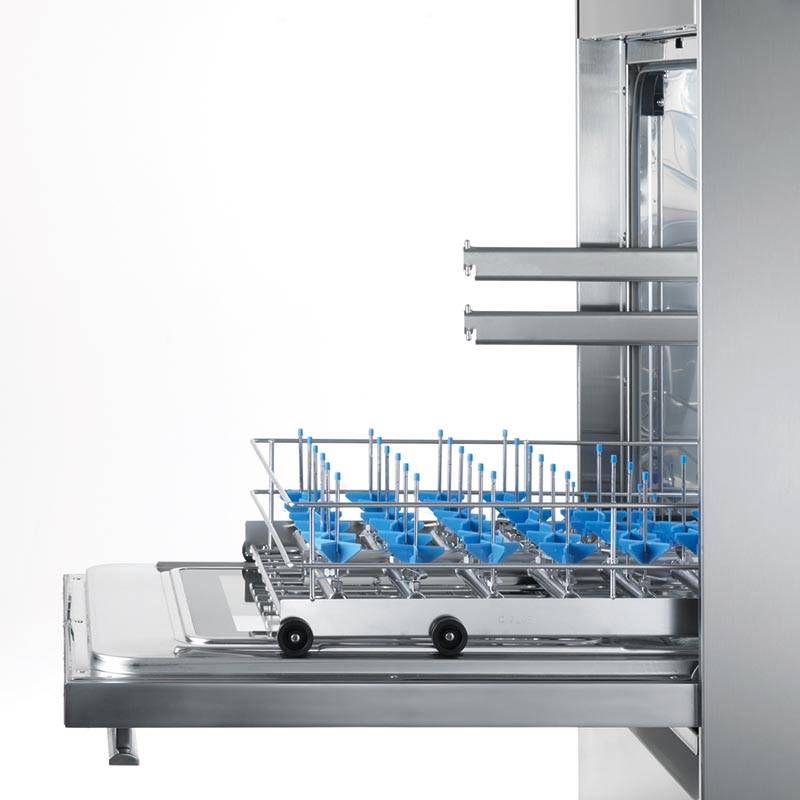

Front loader with drop-down door, without baskets
Free-standing with lid
Fresh water system, max. temperature 93°C
Circulation pump [max. throughput. l/min] 600
Controls/programmes
Freely programmable PROFITRONIC
Electrical safety lock
Peak load cut-out
Serial interface for process documentation
Sensors for automatic mobile unit recognition  Available to order
Plumbing
1x cold water connection, flow pressure 1.5–10 bar (150-1000 kPa)
1x hot water connection, flow pressure 1.5–10 bar (150-1000 kPa)
1x demin. water connection, flow pressure 0.6–10 bar (60-1000 kPa)
1x DN 25 connection for water recovery
3 inlet hoses approx. 1.7 m, 1/2” with 3/4” threaded union
2x DN 22 drain pumps, delivery head height 100 cm
2x DN 22 drain hoses from machine
1x pump for recovery water
Electrical connection
3 N AC 400 V 50 Hz, connection cable
approx. 1.8 m, 5 x 2.5 mm2
Heater rating [kW] 9.0
Circulation pump [kW] 1.2
Total connected load [kW] 10.2
Fuse rating 3 x 16
Dispenser pumps
1x DOS 3 dispenser pump for liquid acidic agents ● (bellows pump)
1x DOS 1 dispenser pump for liquid cleaning agents ● (bellows pump)
Optional dispenser pumps
DOS 2 dispenser pump for liquid acidic agents/rinsing agent
DOS 4 dispenser pump for liquid cleaning agents/disinfecting agents
Water softener
Large capacity for cold and hot water to 70°C
Steam condenser
Rear vent
Drying unit / radial fan
Fan [kW] 0.3
Heater rating [kW] 2.3
Total connected load [kW] 2.6
Air throughput [m3/h] 55
Temperature programmable in 1°C steps [°C] 60-115
Time programmable in 1-minute steps [min.] 1-240
Preliminary filter EU 4, filter rating > 95%, filter life 100 h
Particulate filter, S-Class HEPA filter, EU 13, filter rating 99.992% (according to DIN standard 24184), filter life 500 h
Dimensions/weight
External dimensions H/W/D [mm] 1175/900/700
Internal cabinet dimensions H/W/D [mm] 500/535/500
Internal cabinet capacity [l] 133.8
Weight [kg] 192
Casing
Stainless steel (AE)
Test certificates awarded
VDE, EMV, DVGW, IP x1, CE

Aquatronic P Range

aquatronic

We specify and supply the Aquatronic P range of aqueous ultrasonic multistage cleaning systems. These systems are available in three models – P1, P2 and P3 – with progressively higher levels of automation.

Processes typically comprise stages such as an ultrasonic clean, agitation via spray under immersion, water rinse, de-ionised water rinse and drying.

aquatronic-p1

The Aquatronic P1 is our entry level aqueous multistage ultrasonic cleaning system. Designed for light to medium production volumes.

Advantages of Aquatronic P1 at a glance:

  • Ultrasonic cleaning
  • Powerful spray jets
  • Hot air dryer
  • Extraction
  • PLC controlled.
aquatronic

The Aquatronic P2 is our mid-range aqueous multistage ultrasonic cleaning system. Designed for medium production volumes.

Advantages of Aquatronic P2 at a glance:

  • Upper tank enclosure with automatic door
  • Ultrasonic cleaning
  • Powerful spray jets
  • Hot air dryer
  • Extraction
  • PLC controlled
  • Full colour touch screen HMI
  • Remote access and diagnostics
  • Stylish LED notification .
aquatronic-p3

The Aquatronic P3 is our flagship multi-stage, aqueous cleaning system. Designed for medium to high production volumes.

Advantages of Aquatronic P3 at a glance:

  • Automatic load and unload conveyor beds
  • Fully automated
  • Sealed upper canopy
  • Ultrasonic cleaning
  • Powerful spray jets
  • Hot air dryer
  • Extraction
  • PLC controlled
  • Full colour touch screen HMI
  • Remote access and diagnostics
  • Stylish LED notification system.
